Description

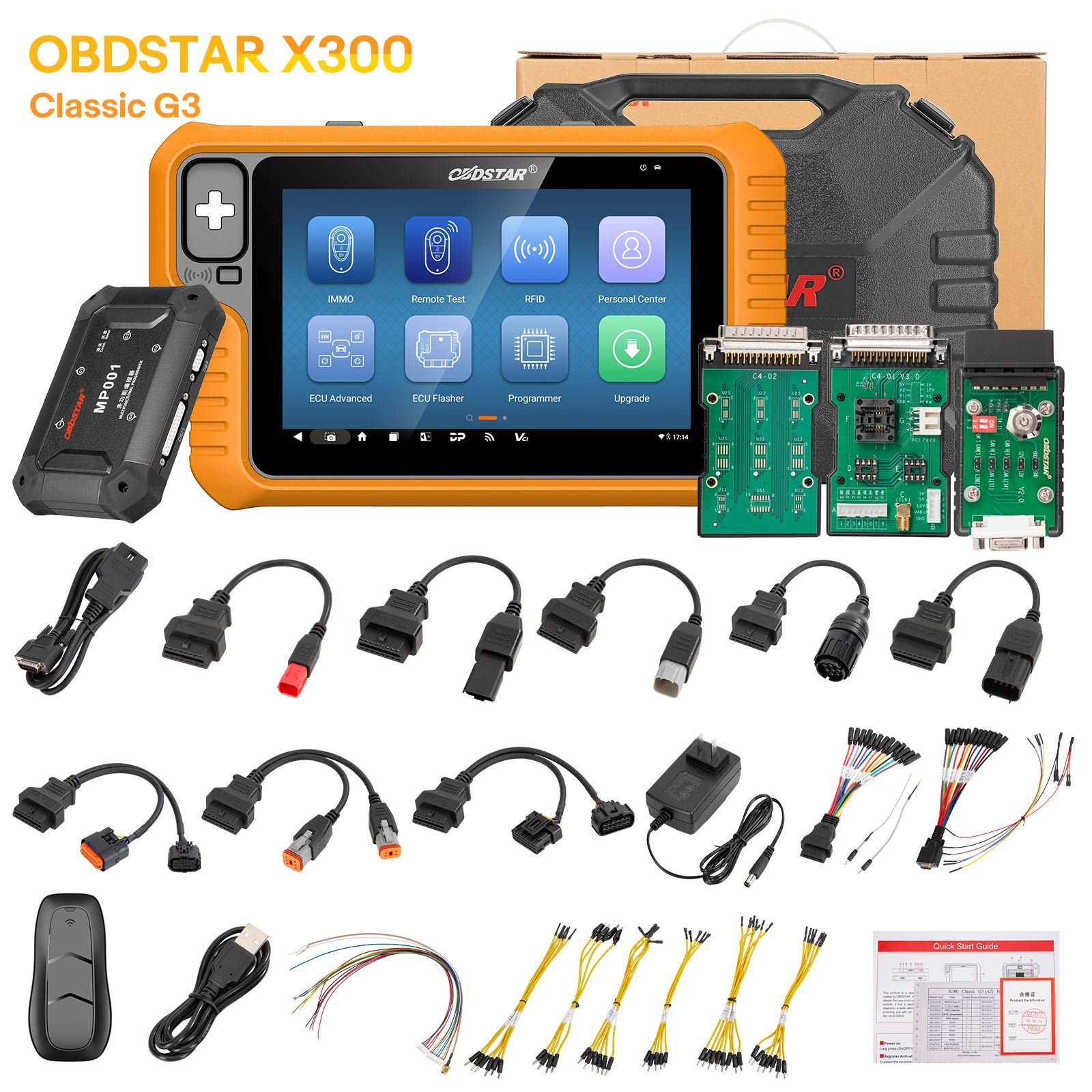

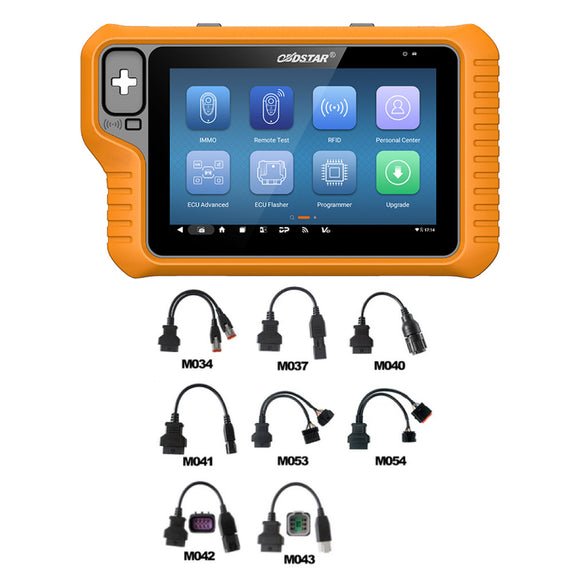

The OBDSTAR X300 Classic G3 Full Software Package is a professional, multi-function automotive programming platform aimed at automotive locksmiths, ECU/TCU technicians, electronics specialists and advanced repair workshops.
The Full Software Package is important: the standard G3 platform is primarily an immobilizer/key-programming system, while the fully activated configuration adds the major paid OBDSTAR modules for cluster/odometer work, ECU/TCU/Body module flashing and cloning, SRS/airbag reset, battery/SAS-related functions and bench Test Platform operations. Current distributors describe this package as combining much of the functionality associated with OBDSTAR’s dedicated ODO Master, DC706, P50 and MT-series products into one G3 platform.
Specifications
| Technical Specifications | |
| Specification OBDSTAR X300 Classic G3 | |
| Product Type Professional key, IMMO and automotive module programming platform | |
| Operating System Android 11 | |
| Display 8-inch fully laminated high-brightness touchscreen | |
| Resolution 1280 × 800 | |
| Processor 64-bit high-performance platform; official G3 specification lists Cortex-A55 2.0 GHz | |
| RAM 4 GB | |
| Storage 64 GB | |
| Battery Approx. 9000 mAh | |
| Rear Camera 8 MP autofocus | |
| Wi-Fi Dual-band 2.4 GHz / 5 GHz | |
| Bluetooth Bluetooth 5.0 | |
| HDMI Yes | |
| USB USB Type-A + Type-C | |
| CAN FD Built in | |
| DoIP Built in | |
| Fault-Tolerant / Low-Speed CAN Built in | |
| OBD 16-pin Switching Built in | |
| RFID Built in | |
| Remote Frequency Test Built in | |
| VCI Processor High-performance STM32H723-class VCI | |
| Vehicle Categories Car, HD, E-Car, Motorcycle, Marine/Jet Ski | |
| Free Update Period 2 years on current full packages | |
| Online Updates Yes | |
| Full Software Package IMMO + Cluster + ECU Flasher + Crash Reset + Test Platform |
