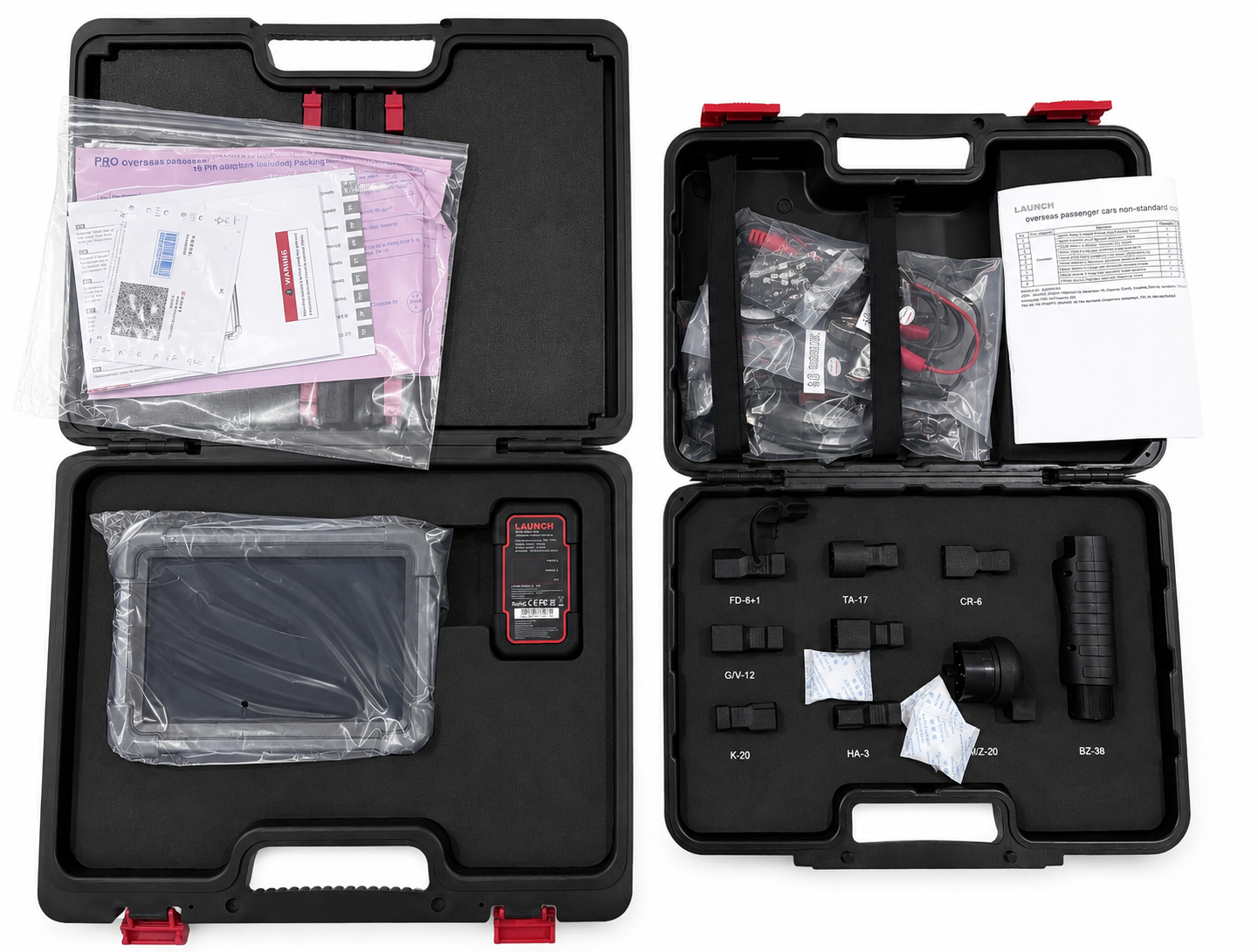

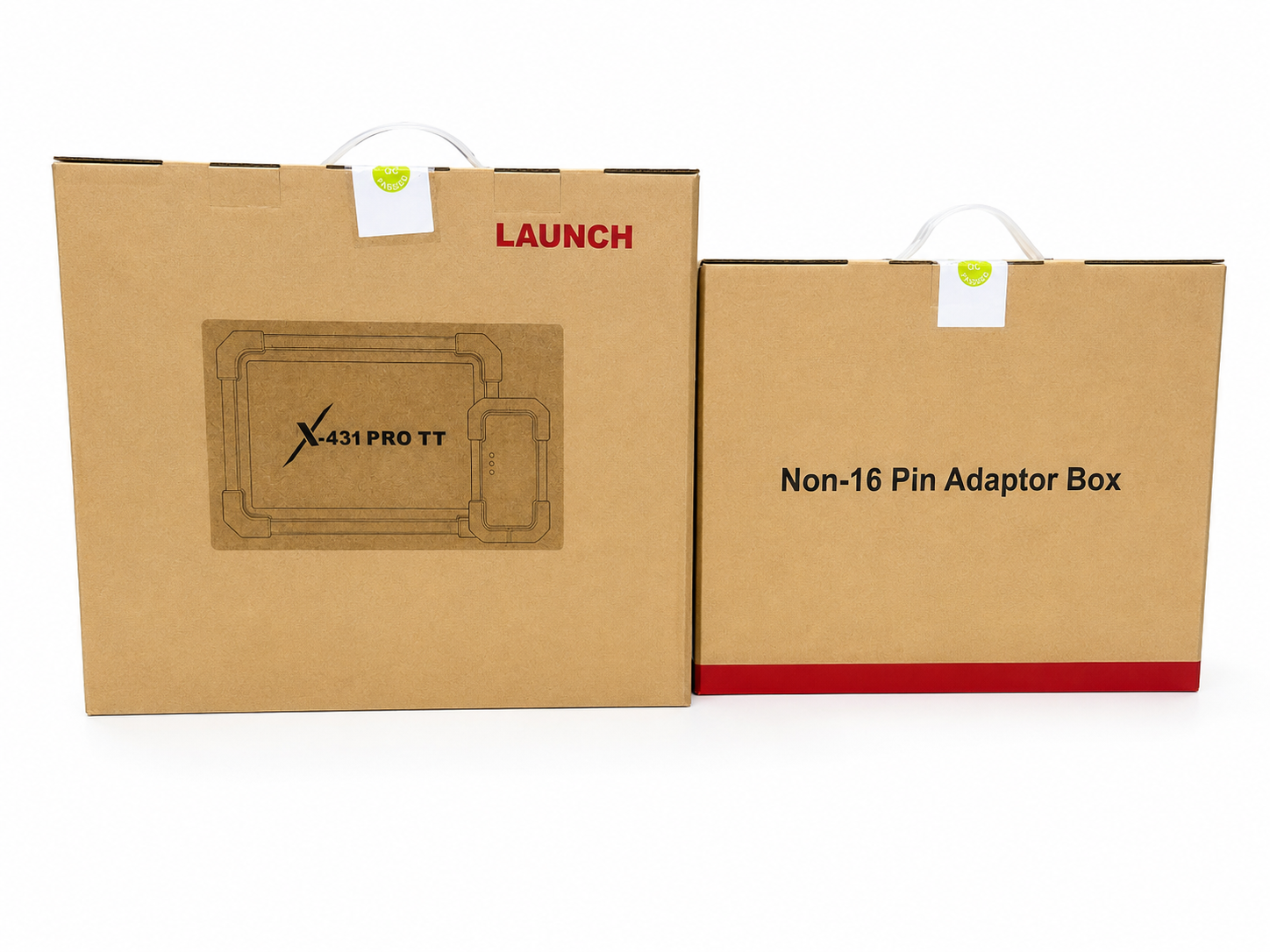

Launch X431 ProTT

Description

The Launch X431 PRO TT is a professional multi-brand diagnostic scanner designed to give automotive technicians comprehensive control over vehicle diagnostics, maintenance and electronic system testing.

Using the DBScar VII wireless VCI, the PRO TT provides convenient Bluetooth communication between the vehicle and diagnostic tablet. It performs OE-level diagnostics across major electronic control systems and enables fault-code reading and clearing, live-data analysis, AutoVIN scanning, component testing and maintenance operations.

The PRO TT also provides bi-directional active tests, enabling technicians to command compatible components such as pumps, valves, fans, relays, windows and other actuators during troubleshooting.

Coding, adaptations and guided functions are available for supported manufacturers, while optional immobilizer software and compatible Launch programming accessories can further expand its capabilities.

The tablet runs Android 10 and features an 8-inch 1280 × 800 display, 2.0GHz quad-core processor, 4GB RAM, 64GB storage and a 6300mAh battery.

Key Features

OE-level full-system diagnostics
DBScar VII wireless VCI
Bluetooth vehicle communication
AutoVIN
Bi-directional active testing
38+ service and reset functions
ECU coding on supported vehicles
Adaptation and matching functions
Guided functions where supported
CAN FD support
DoIP capability depending on required connection hardware
FCA security gateway capability
Optional immobilizer/key programming expansion
8-inch 1280 × 800 touchscreen
Android 10
2.0GHz quad-core processor
4GB RAM
64GB storage
6300mAh battery

Available diagnostic, coding and programming functions depend on the specific vehicle and installed software licences.
