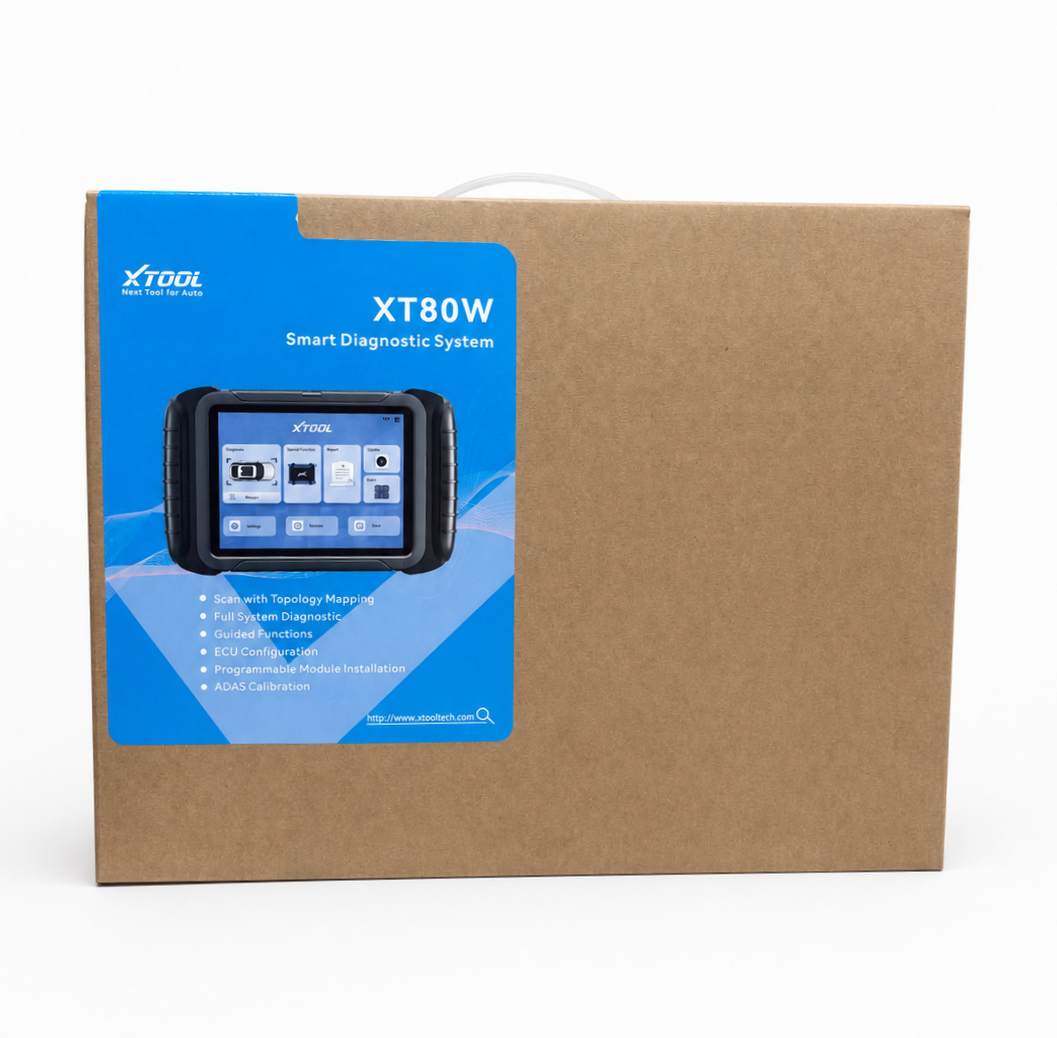

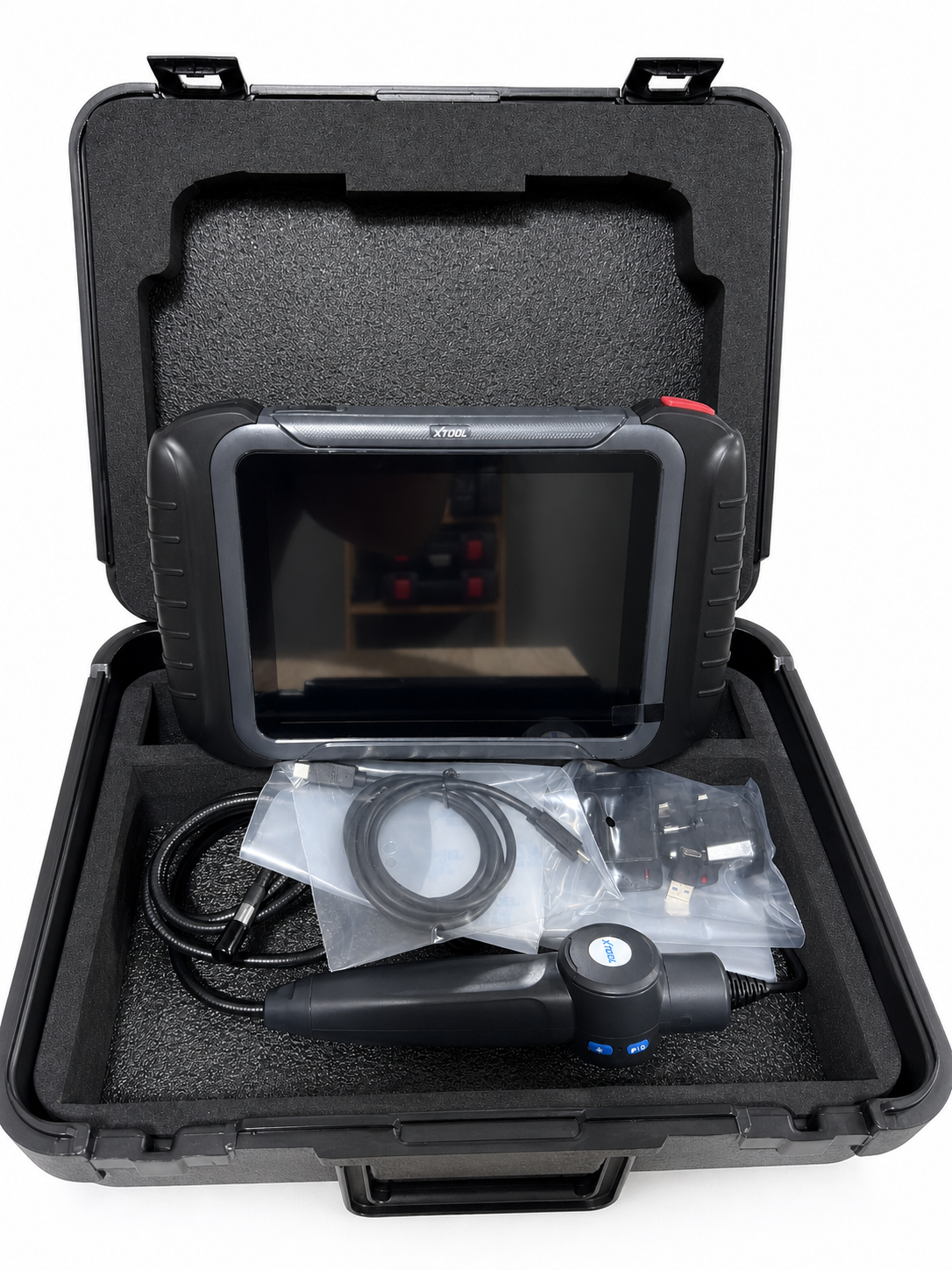

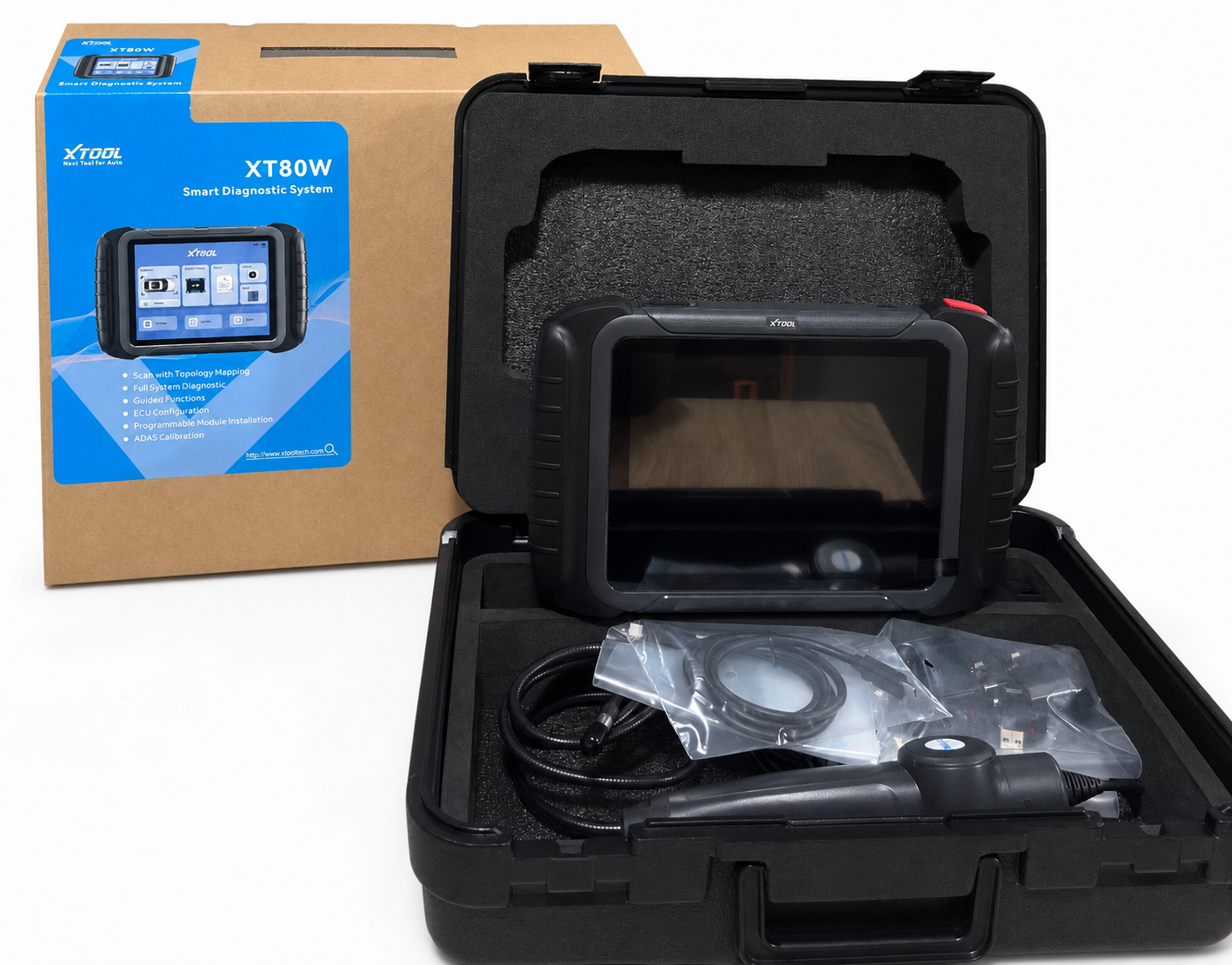

XTOOL XT80W

Description

The XTOOL XT80W 2026 is an 8-inch wireless professional diagnostic system intended for mechanics, electricians and repair shops.

It provides full-system OE-level diagnostics together with topology mapping, active testing, coding/adaptation functions and modern vehicle communication protocols.

Key Features
Wireless Wi-Fi VCI
Full-system diagnosis
Topology Auto-Scan
Bi-directional/active testing
ECU coding and adaptations where supported
AutoVIN/AutoScan
Full OBD-II diagnostics
35+ core special functions, with newer manufacturer material advertising an expanded 40+ function set
CAN FD
DoIP
FCA Secure Gateway support on current model
Optional ADAS capability
8MP camera
Videoscope support
Three years software updates
Common Active Tests
EVAP test
Fuel-pump activation
Fuel-injector testing
Cooling-fan testing
A/C clutch testing
Electronic component activation
Common Service Functions
Airbag reset
ECU configuration
Suspension adaptation
DPF regeneration
ABS bleeding
Oil reset
EPB
SAS calibration
BMS reset
Injector coding
Throttle adaptation
TPMS reset
Additional manufacturer-specific resets
Vehicle Coverage

XTOOL advertises compatibility with:

100+ brands on current product material
10,000+ vehicle models
American vehicles
Asian vehicles
European vehicles
Chinese-market manufacturers
Generally 1996 and newer OBD-II applications, subject to individual function coverage
Technical Specifications
Android 10
8-inch 1024 × 768 screen
Quad-core 1.5GHz processor
64GB storage
5000mAh battery
8MP rear camera
Wi-Fi VCI
USB Type-C
BLE 5.0
Vehicle voltage: 9–36V
CAN FD
DoIP
3-year free update period
2-year listed warranty
Best For

Professional repair shops wanting wireless diagnostics + topology + modern CAN FD/DoIP coverage in a compact 8-inch system.
