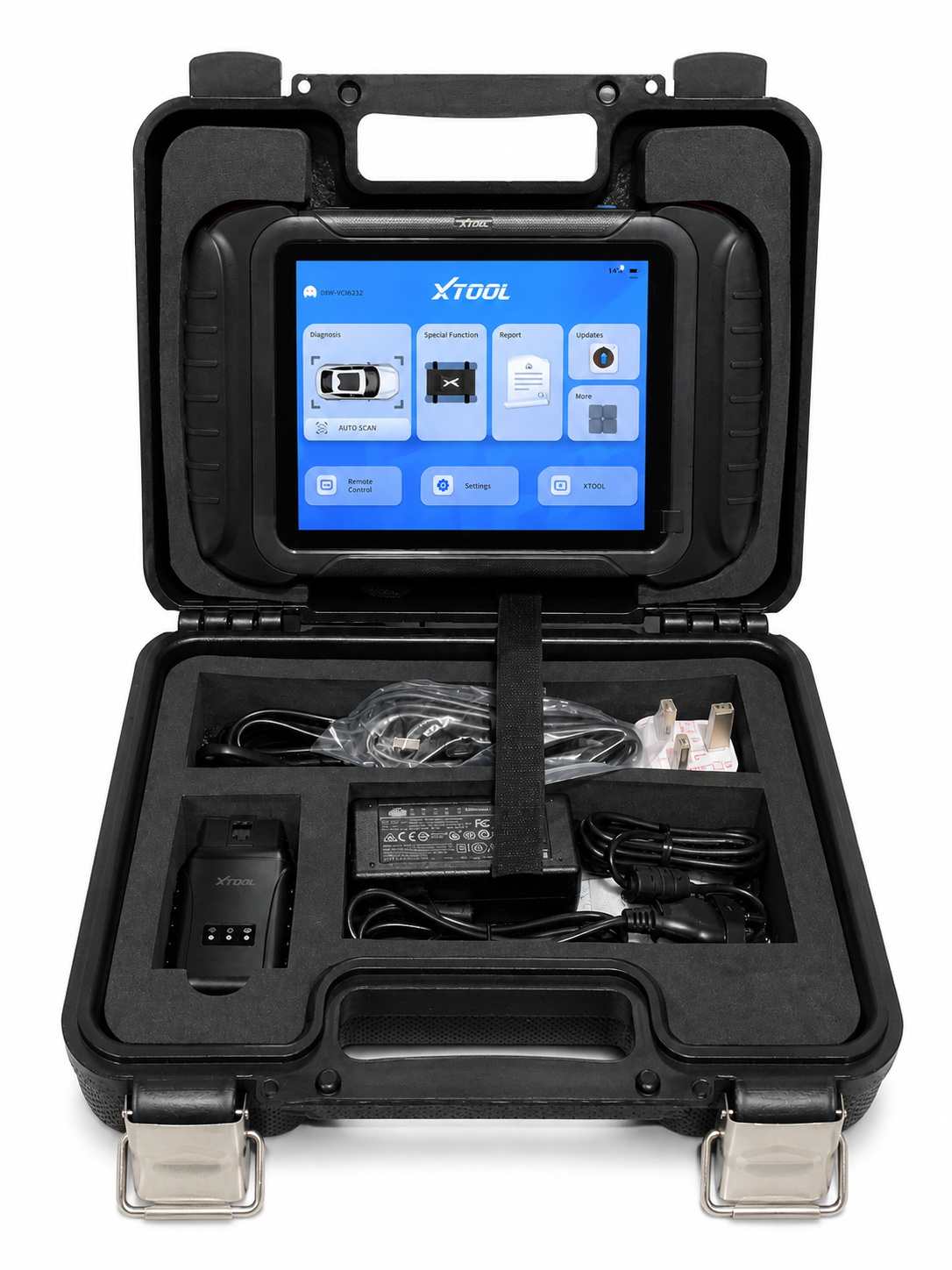

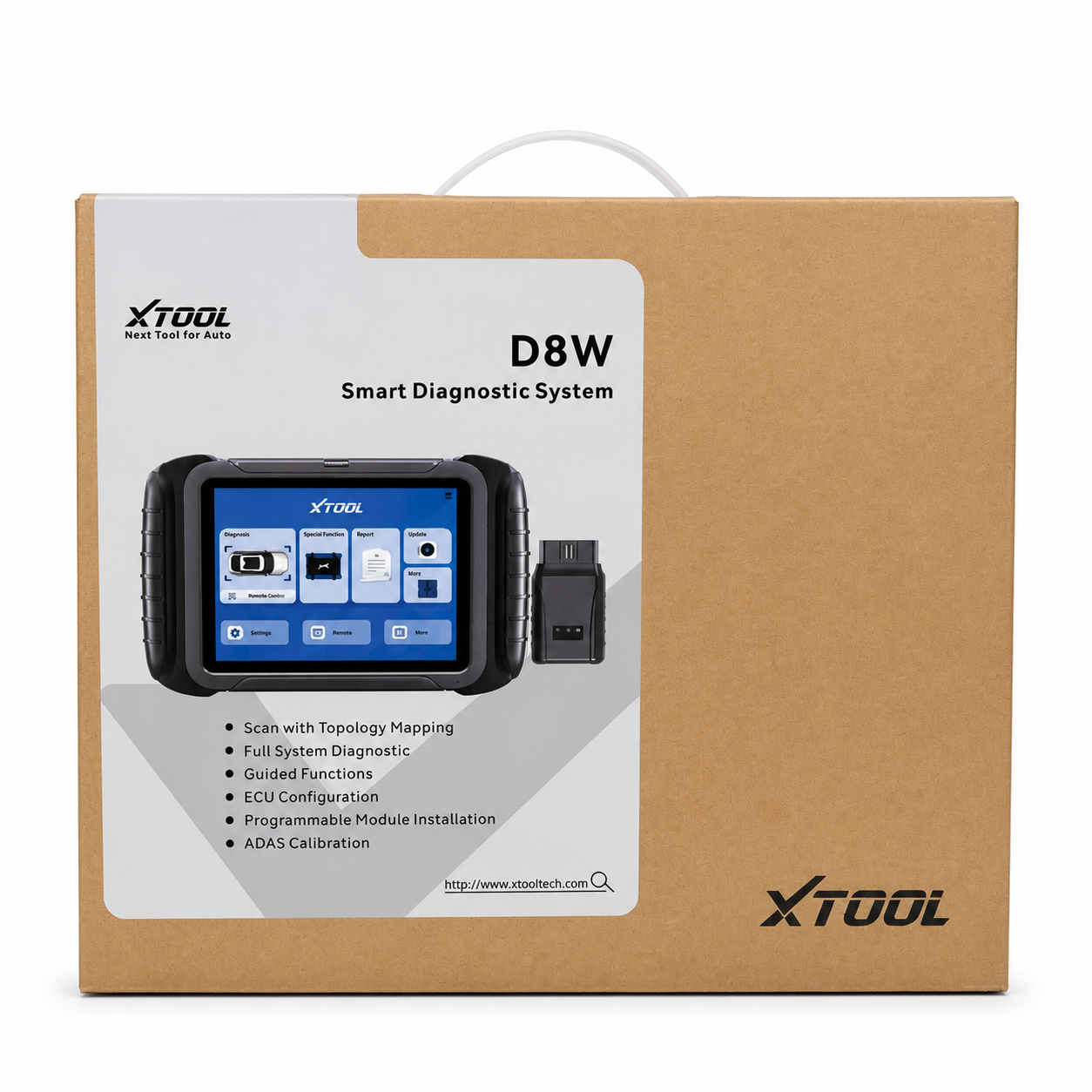

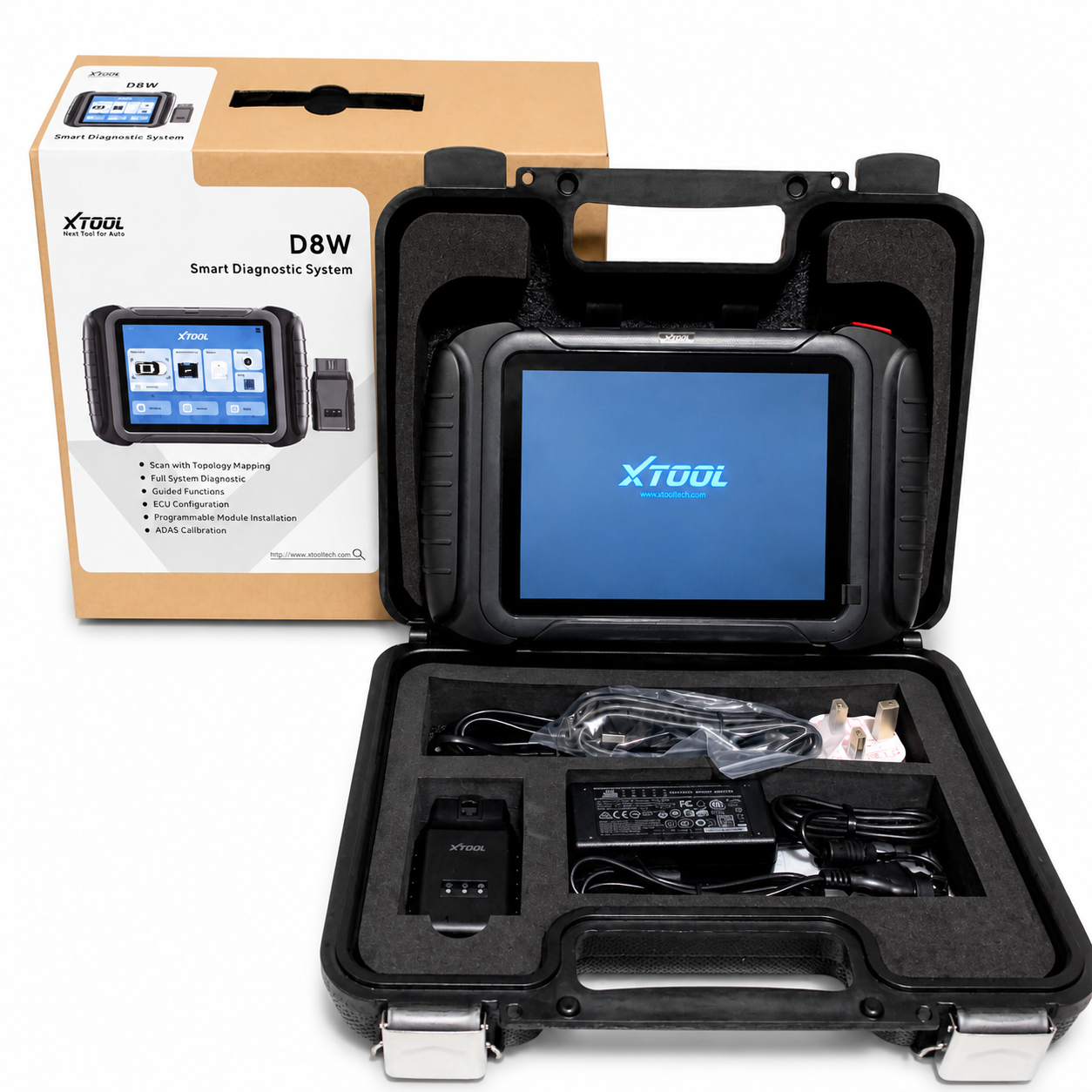

XTOOL D8W

Description

The XTOOL D8W combines advanced full-system diagnostics with wireless communication, topology mapping, ECU coding and extensive active-testing capability.

Its Topology Module Mapping feature displays the vehicle’s ECU network visually. Instead of manually checking individual systems, technicians can see which modules are healthy, contain faults or are experiencing communication problems.

This can significantly reduce diagnostic time on modern vehicles containing dozens of interconnected electronic modules.

Key Features
Wireless Wi-Fi diagnostics
Wired connection capability
Topology Module Mapping
Full-system diagnostics
4,000+ active tests
Full bi-directional control
ECU coding
Coding and adaptations
PMI programming
Ford/Lincoln/Mazda PMI support
42+ maintenance functions
AutoVIN/vehicle detection
Full OBD-II functions
CAN FD
DoIP
Live-data graphing
8-data-stream simultaneous display
Recording
Playback
CSV data export
Three years free updates
Common Active Tests
EVAP system testing
Fuel-pump activation
Fuel-injector activation
Cooling-fan activation
A/C clutch activation
Windows
Doors
Sunroof
Pumps
Solenoids
Electronic motors
Other module-controlled components
Service Functions

Examples include:

Throttle relearn
Cam/crank relearn
ABS bleeding
Injector coding
Transmission reset/adaptation
Power-balance testing
Oil reset
EPB
SAS calibration
BMS reset
DPF regeneration
TPMS services
Suspension procedures
Technical Specifications
Android 10
8-inch 1024 × 768 touchscreen
Quad-core processor
64GB storage
Wi-Fi/cable VCI
5000mAh battery
USB Type-C
8MP camera
CAN FD
DoIP
3-year software updates
Best For

Professional workshops requiring topology diagnostics plus wireless operation and extensive active testing.
