Description

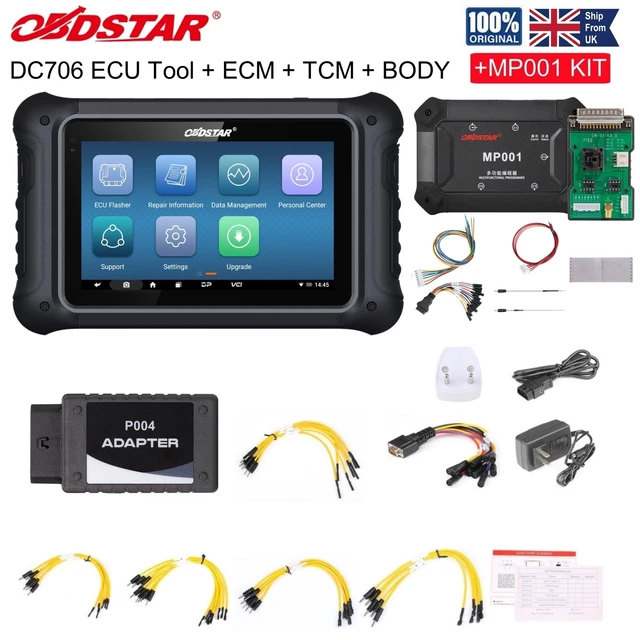

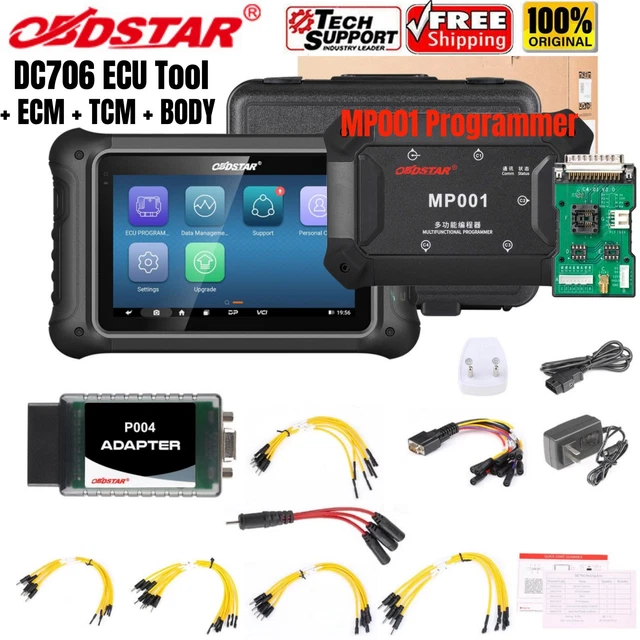

The OBDSTAR DC706 Full Version + MP001 Set is a specialized professional ECU/TCU programming and cloning platform developed for automotive electronics technicians, ECU repair centres, transmission specialists and advanced workshops.
The Full Version activates all three principal DC706 software groups: ECM + TCM + Body/Other. The accompanying MP001 multifunction programmer expands the system with direct EEPROM/MCU access, additional Boot-mode capability and support for control units—including some SIMOS 18 applications—that cannot be handled by the older P003/P003+ adapters alone.
A key distinction is that the DC706 is not primarily a general diagnostic tablet or key programmer. OBDSTAR officially classifies it as an ECU Flasher designed for reading, writing, backing up, recovering and cloning automotive control modules. OBDSTAR also states that IMMO, Cluster Calibration and dedicated Airbag Reset software cannot simply be activated on the DC706 platform.
Specifications
| Technical Specifications | |
| Specification OBDSTAR DC706 | |
| Product Type Professional ECU/TCU/Body module flasher & cloning tool | |
| Version Full — ECM + TCM + BODY | |
| Operating System Android 5.1.1 | |
| Processor RK3128 Quad-Core Cortex-A7 | |
| Display 7-inch capacitive touchscreen | |
| Resolution 1024 × 600 | |
| Internal Storage 16 GB | |
| Expandable Storage MicroSD/TF up to 32 GB | |
| Battery 3700 mAh rechargeable lithium-polymer | |
| Wi-Fi Yes | |
| ECM Software Included | |
| TCM Software Included | |
| Body/Other Software Included | |
| OBD Programming Yes, supported modules | |
| Bench Programming Yes | |
| Boot Mode Yes, supported ECUs | |
| BDM Yes, supported ECUs | |
| JTAG Yes, supported ECUs | |
| EEPROM Read/Write Yes | |
| DFlash / PFlash Yes | |
| MAP Data Read/Write Yes | |
| ECU Cloning Yes | |
| TCM Cloning Yes | |
| Body Module Cloning Yes | |
| Motorcycle ECU Support Yes | |
| MP001 Programmer Included in this package | |
| Free Software Updates 1 year from registration | |
| Language English | |
| Tablet Weight Approx. 0.766 kg | |
| Dimensions 243 × 148 × 36 mm | |
| Operating Temperature -10°C to 55°C | |
| Storage Temperature -20°C to 70°C |
