Description

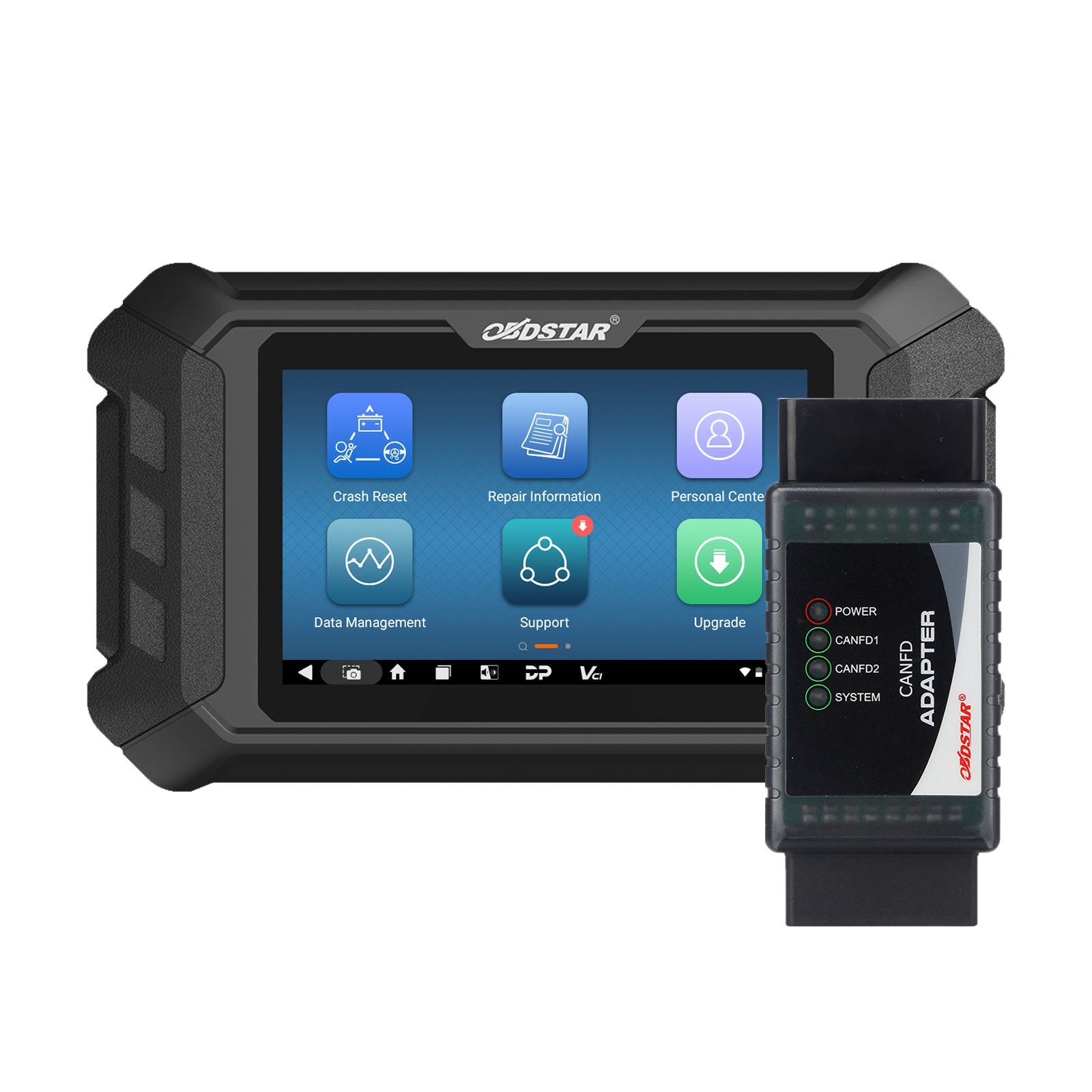

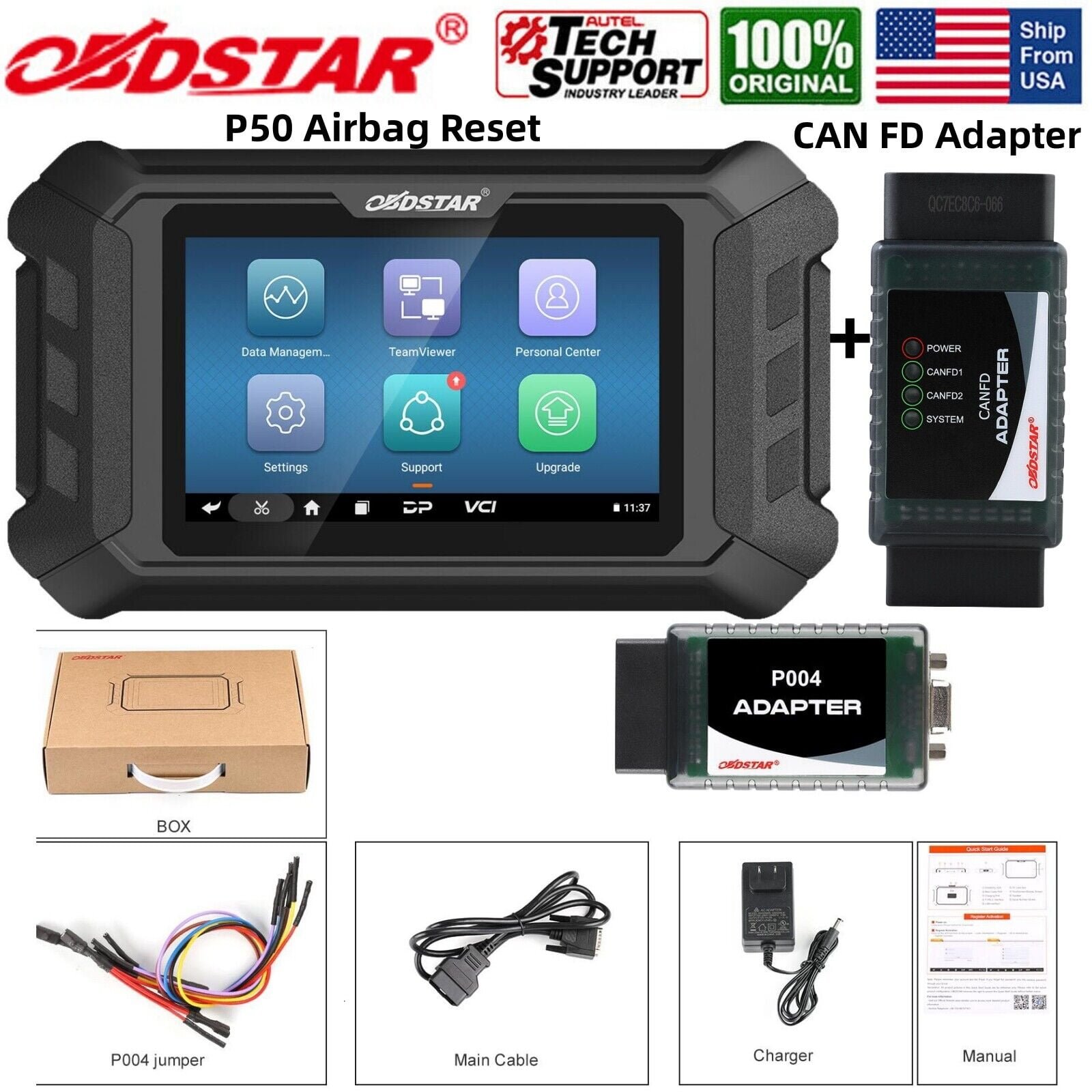

The OBDSTAR P50 is a dedicated professional SRS/Airbag crash-data reset and automotive electronic-module servicing tool. In the configuration you specified, the package combines the standard P50 Airbag Reset platform with the Cluster Calibration/ODO Master software authorization and an external OBDSTAR CAN FD Adapter, making it considerably more capable than the basic P50 package.
As of OBDSTAR’s September 2026 coverage database, the P50 airbag software covers 108 vehicle brands and more than 17,000 SRS ECU part numbers, with functions including crash-data clearing, EEPROM/FLASH reading and writing, VIN writing, DTC functions, battery-module reset and steering-angle-related repair functions on supported modules.
Specifications
| Technical Specifications | |
| Specification OBDSTAR P50 | |
| Product Type Professional Airbag/SRS Crash Reset Tool | |
| Package Configuration Airbag Reset + Cluster Calibration + CAN FD Adapter | |
| Operating System Android 5.1.1 | |
| Processor RK3128 Quad-Core Cortex-A7 | |
| Display 5.0-inch capacitive touchscreen | |
| Resolution 800 × 480 | |
| Battery 2600 mAh rechargeable lithium-polymer | |
| Memory Expansion MicroSD/TF card up to 32 GB | |
| Wi-Fi Yes | |
| Airbag Coverage 108 brands | |
| SRS ECU Coverage 17,000+ ECU part numbers | |
| Airbag Crash Reset Yes | |
| BENCH Mode Yes | |
| EEPROM Read/Write Yes, supported modules | |
| FLASH Read/Write Yes, supported modules | |
| VIN Writing Yes, supported modules | |
| Read/Clear DTCs Yes | |
| Battery Module Reset / MVBM Yes | |
| SAS Functions Yes | |
| Cluster Calibration Yes — when ODO Master/cluster authorization is activated | |
| Oil/Service Reset Included with applicable cluster/ODO authorization | |
| CAN FD Yes through supplied CAN FD Adapter | |
| P004 Bench Adapter Used for applicable SRS Bench operations | |
| Language English | |
| Free Updates 1 year from registration | |
| Operating Temperature -10°C to 55°C | |
| Storage Temperature -20°C to 70°C | |
| Weight Approx. 700 g | |
| Dimensions 198 × 115 × 31 mm |
