Description

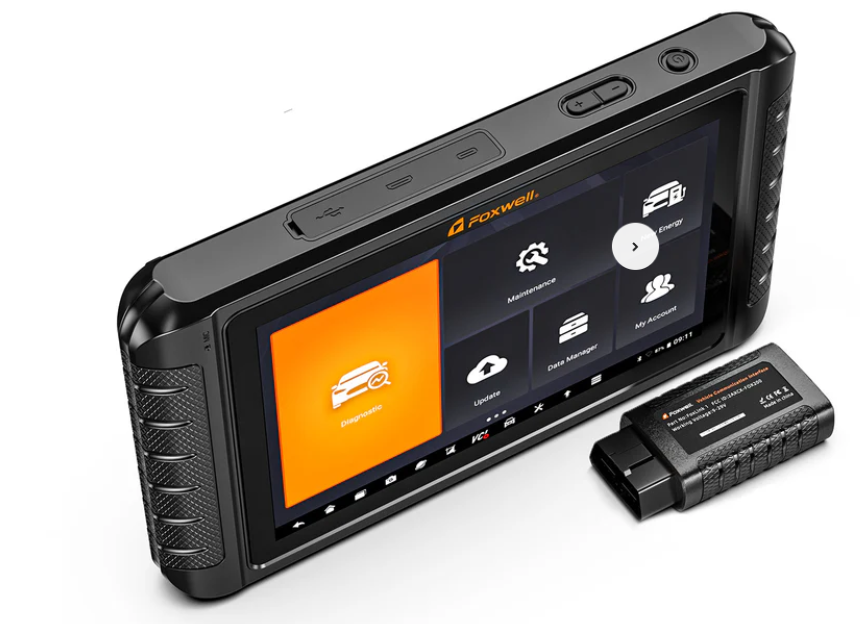

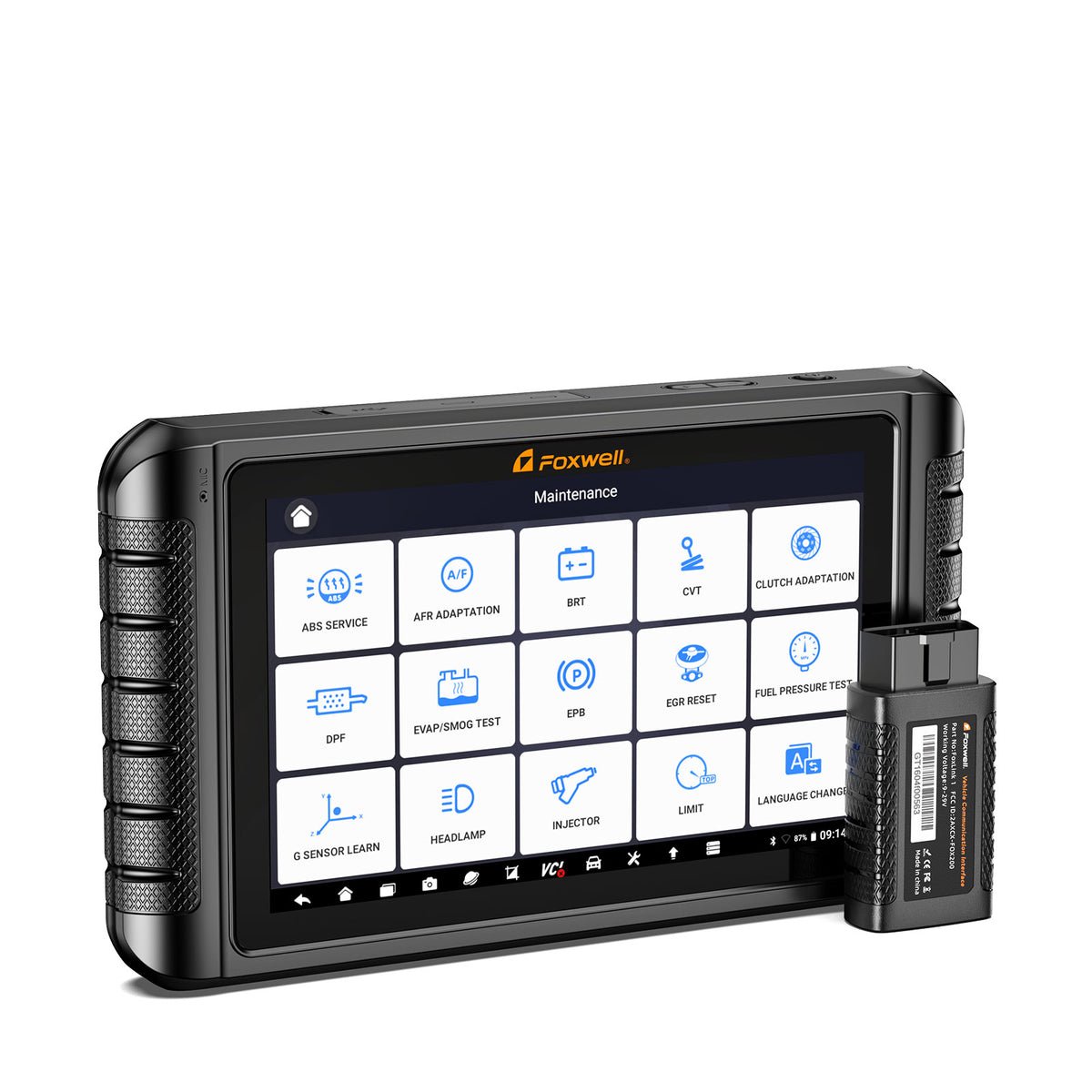

The FOXWELL NT1009 is a high-level professional automotive diagnostic platform designed for workshops, diagnostic technicians, auto electricians, mobile mechanics and advanced automotive specialists. It combines full-system OE-level diagnostics, wireless bi-directional control, ECU coding/offline programming, topology mapping, 38+ maintenance functions, VAG guided functions, FCA AutoAuth access and EV/NEV support in a rugged 10.1-inch Android tablet.
A major step above the NT809, the NT1009 adds a larger display, wireless VCI, ECU coding, topology mapping, additional service functions, more powerful hardware and selected key/immobilizer functions. FOXWELL currently positions it as one of its professional all-in-one diagnostic platforms.
Specifications
| Technical Specifications | |
| Specification FOXWELL NT1009 | |
| Product Type Professional all-system diagnostic platform | |
| Display 10.1-inch LED IPS capacitive touchscreen | |
| Resolution 1280 × 800 | |
| Operating System Android 9.0 | |
| Processor Quad-Core 2.0 GHz | |
| RAM 2 GB DDR3L | |
| Internal Storage 64 GB | |
| Rear Camera 5 MP | |
| Battery 8000 mAh lithium-polymer | |
| Battery Runtime Up to approximately 8 hours | |
| Vehicle Connection Wireless VCI | |
| Wireless Range Approx. 10–20 metres | |
| Bluetooth Bluetooth 4.0 | |
| Wi-Fi Built-in Wi-Fi | |
| USB USB / USB Type-C | |
| HDMI Yes | |
| Full-System Diagnostics Yes | |
| AutoVIN / Smart VIN Yes | |
| Bi-Directional Control Yes | |
| ECU Coding Yes, supported vehicles | |
| Offline Programming Yes, supported applications | |
| Online ECU Flash Programming No | |
| Topology Mapping Yes, supported vehicles | |
| VAG Guided Functions Yes | |
| Hidden Feature Activation Yes, supported vehicles | |
| IMMO / Key Functions Yes, vehicle-dependent | |
| Maintenance Functions 38+ | |
| FCA AutoAuth / SGW Yes | |
| CAN FD Supported in current coverage | |
| DoIP Supported in current coverage | |
| EV / Hybrid Diagnostics Yes; package/coverage dependent | |
| Software Updates Wi-Fi | |
| Free Update Period 3 years | |
| Warranty 1 year | |
| Dimensions Approx. 272 × 163 × 39 mm |
